YOUR MISSION:
Automated manufacturing is your playing field. Optimize your processes, reduce costs, and increase efficiency with WAGO solutions that integrate perfectly into your production lines. We provide the components that make your mission a success. Ready for the next level of manufacturing?

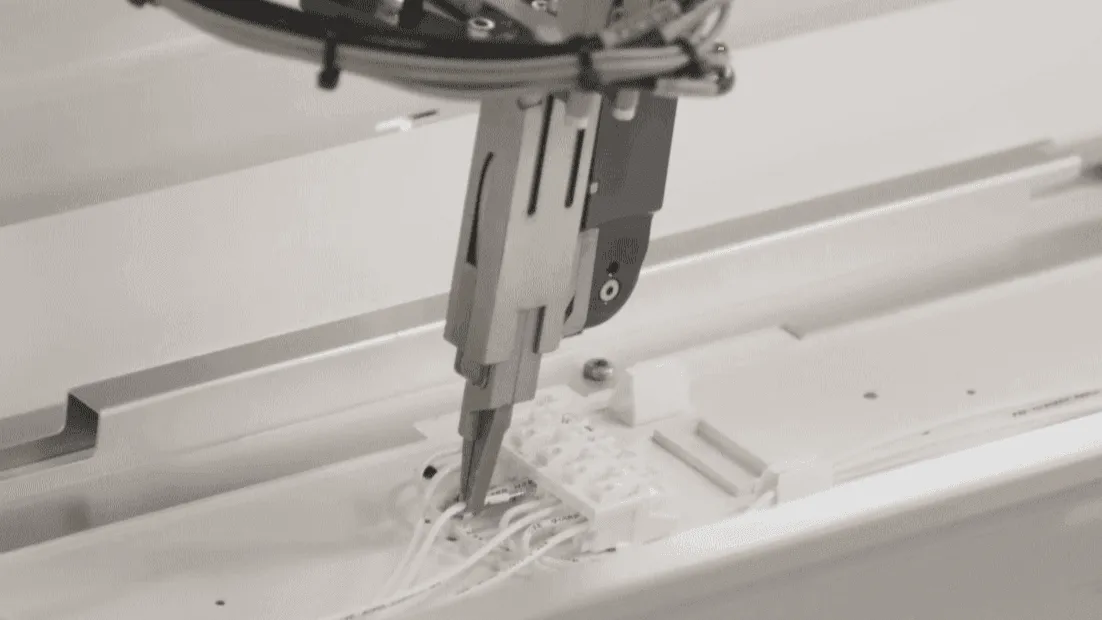

Ready for wiring robots with connection technology from WAGO
Level up your series production: WAGO PCB and device terminal blocks feature a clever funnel-shaped conductor entry. Many series also feature a push-in CAGE CLAMP® connection. This makes them perfect for robot wiring. The wiring robot automatically strips rigid conductors. Thanks to the funnel entry, it inserts conductors precisely. This powerful combination provides maximum efficiency in the production game.

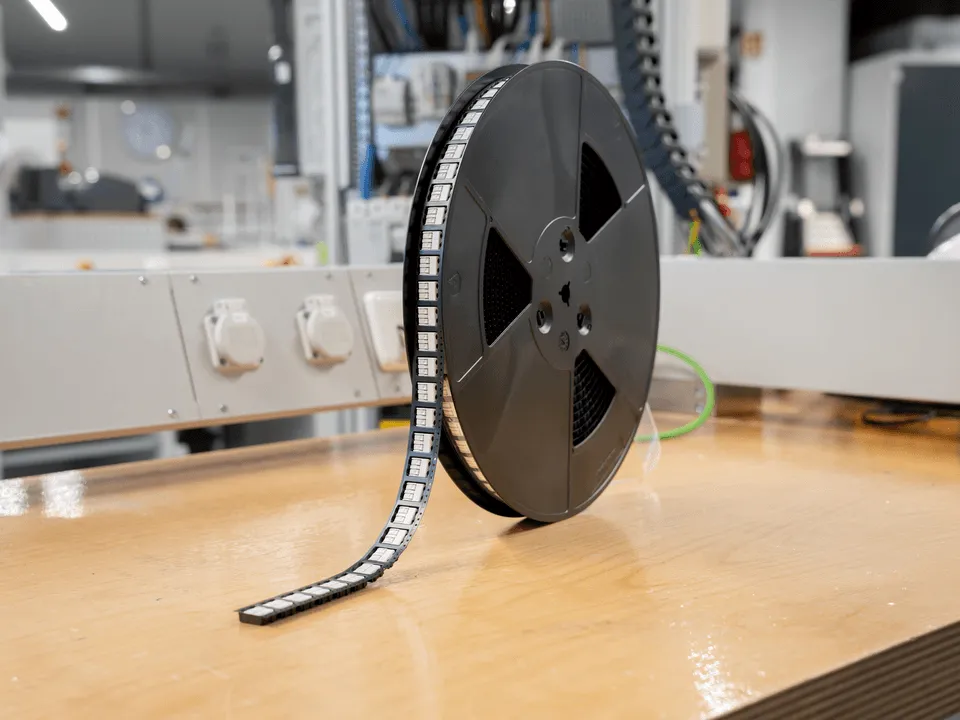

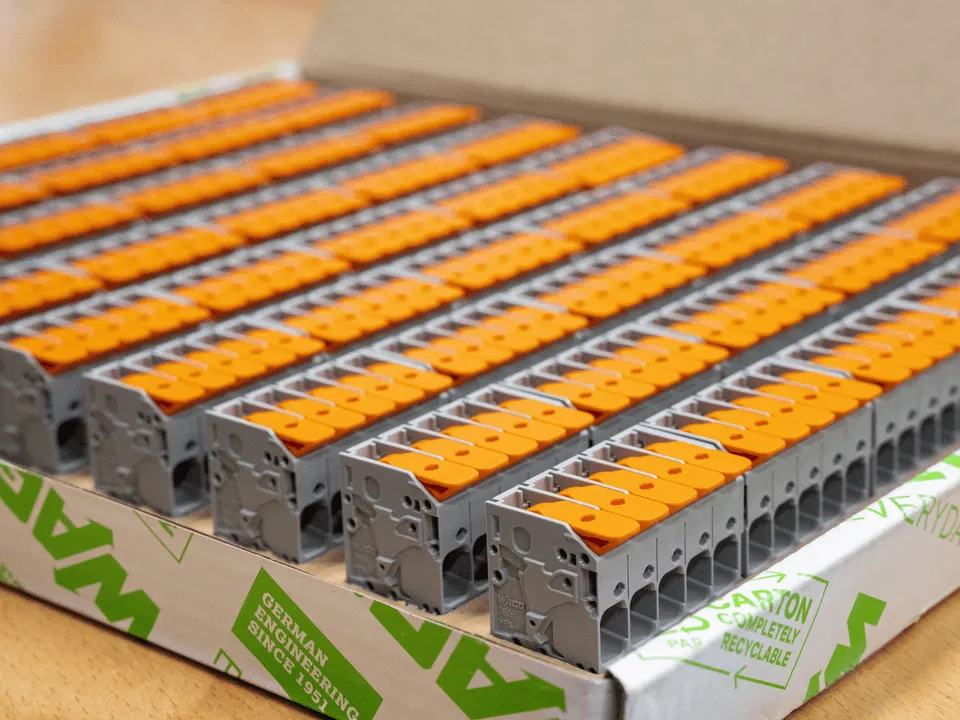

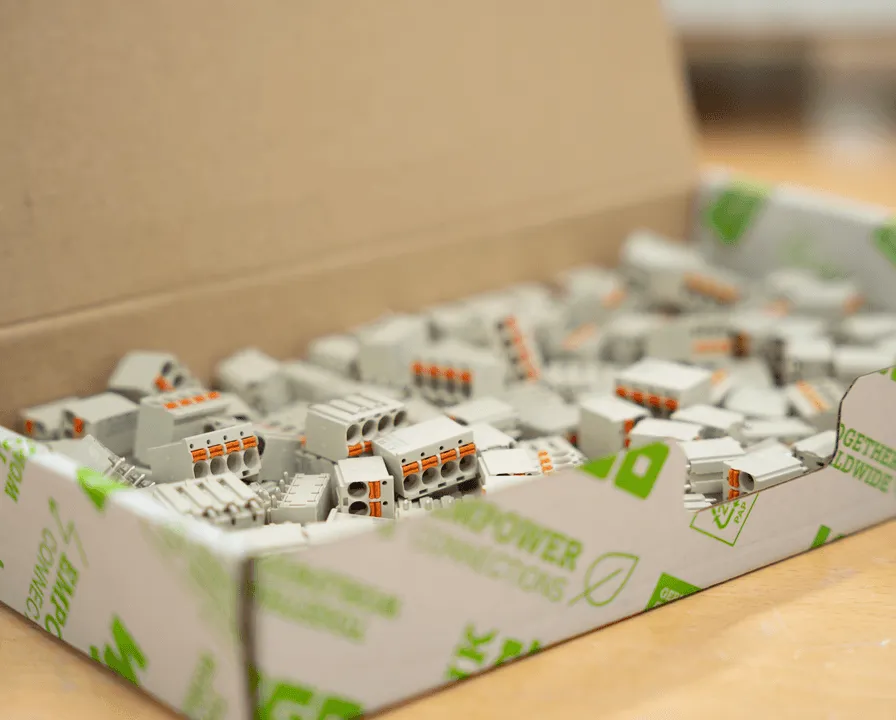

Optimized packaging for your process
Optimized packaging for your process

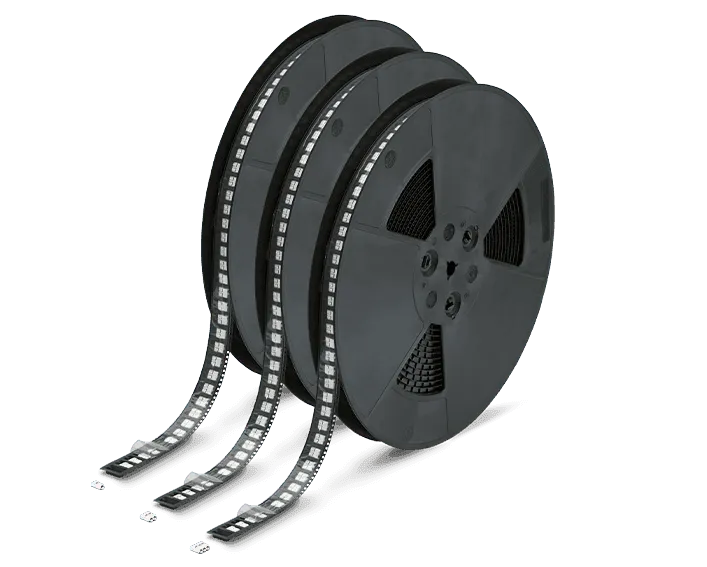

Efficiency starts at goods receipt. WAGO offers a variety of packaging options tailored perfectly to your automated assembly processes. From tape to tray – choose the solution that speeds up your production and reduces costs.
Your game plan for efficient manufacturing
Your game plan for efficient manufacturing
In the race for profitability, every step counts. Discover WAGO solutions that revolutionize your automated manufacturing processes. From optimized packaging options to innovative THR products – we provide the decisive upgrades for your mission.

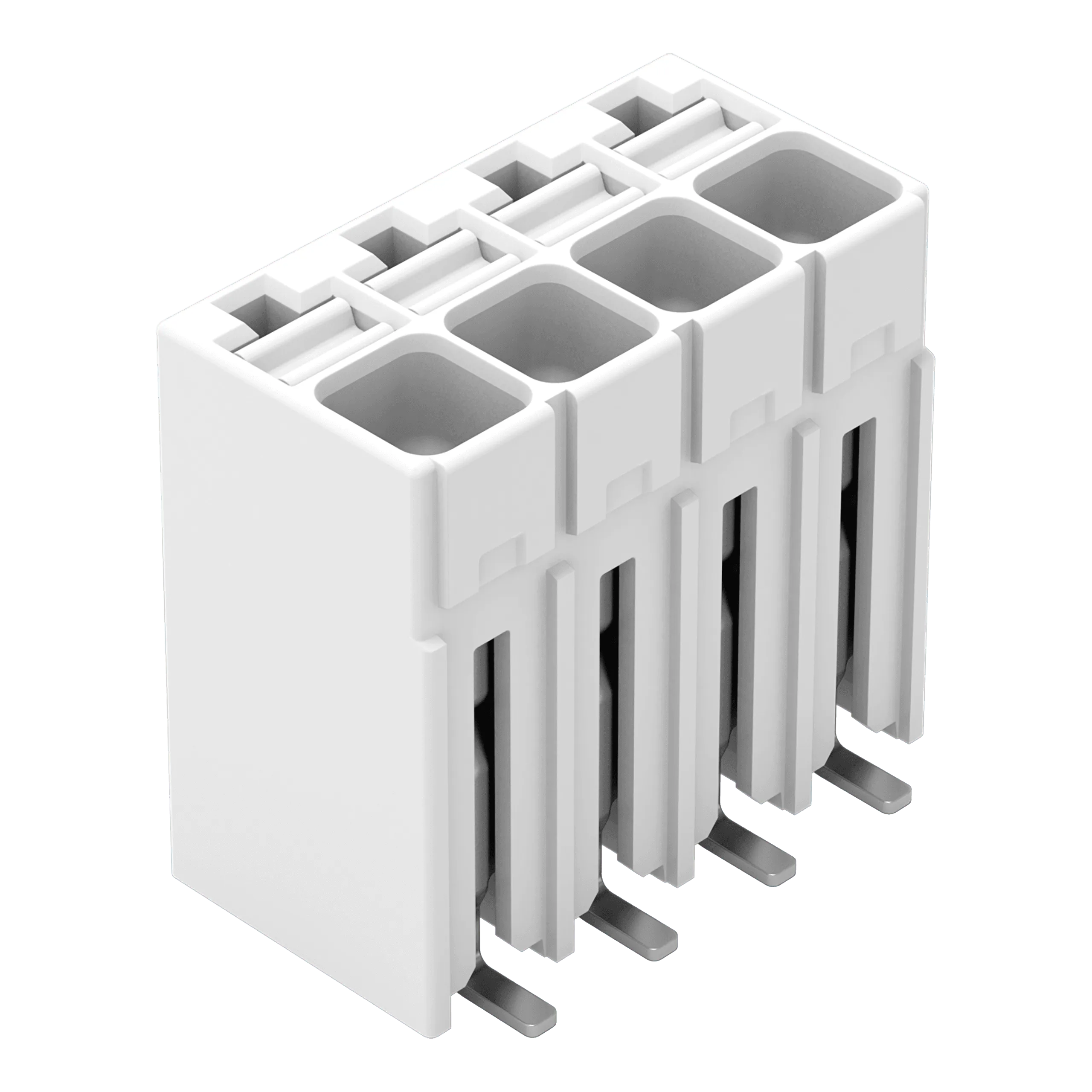

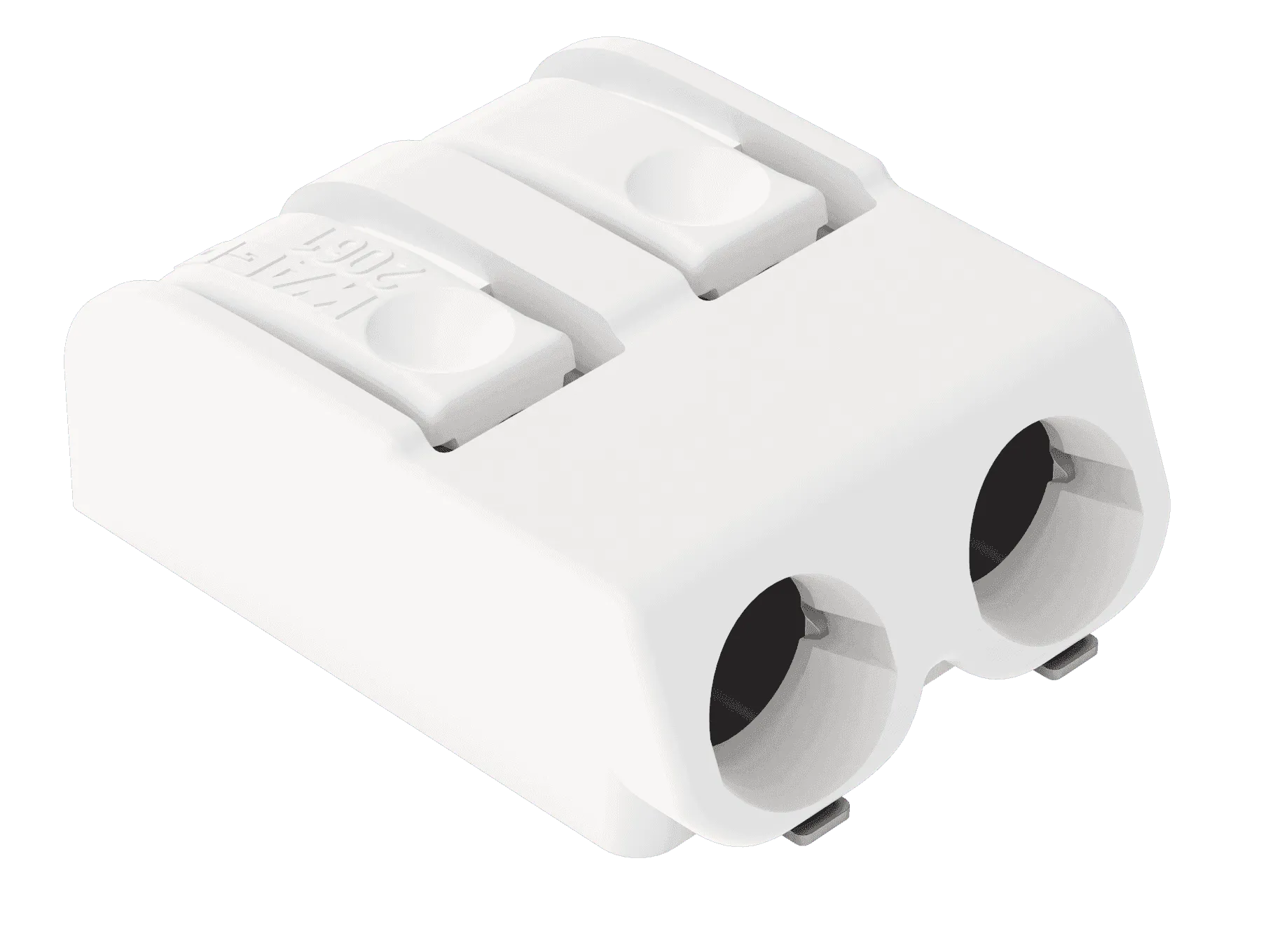

SMD PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; Push-in CAGE CLAMP®; in tape-and-reel packaging; white
1-conductor female connector; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 1,50 mm²; light gra
1-conductor THT female connector straight; push-button; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 1.0 mm Ø solder pin; 1,50 mm²; light gray
PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; Push-in CAGE CLAMP®; 1,50 mm²; gray
PCB terminal block; 2.5 mm²; Pin spacing 5 mm; Push-in CAGE CLAMP®; 2,50 mm²; gray
SMD PCB terminal block; 0.5 mm²; Pin spacing 3 mm; PUSH WIRE®; in tape-and-reel packaging; white
SMD PCB terminal block; push-button; 0.75 mm²; Pin spacing 4 mm; Push-in CAGE CLAMP®; in tape-and-reel packaging; white
SMD PCB terminal block; push-button; 1.5 mm²; Pin spacing 6 mm; Push-in CAGE CLAMP®; in tape-and-reel packaging; white
SMD PCB terminal block; push-button; 0.75 mm²; Pin spacing 6.5 mm; Push-in CAGE CLAMP®; in tape-and-reel packaging; Without housing; silver-colored

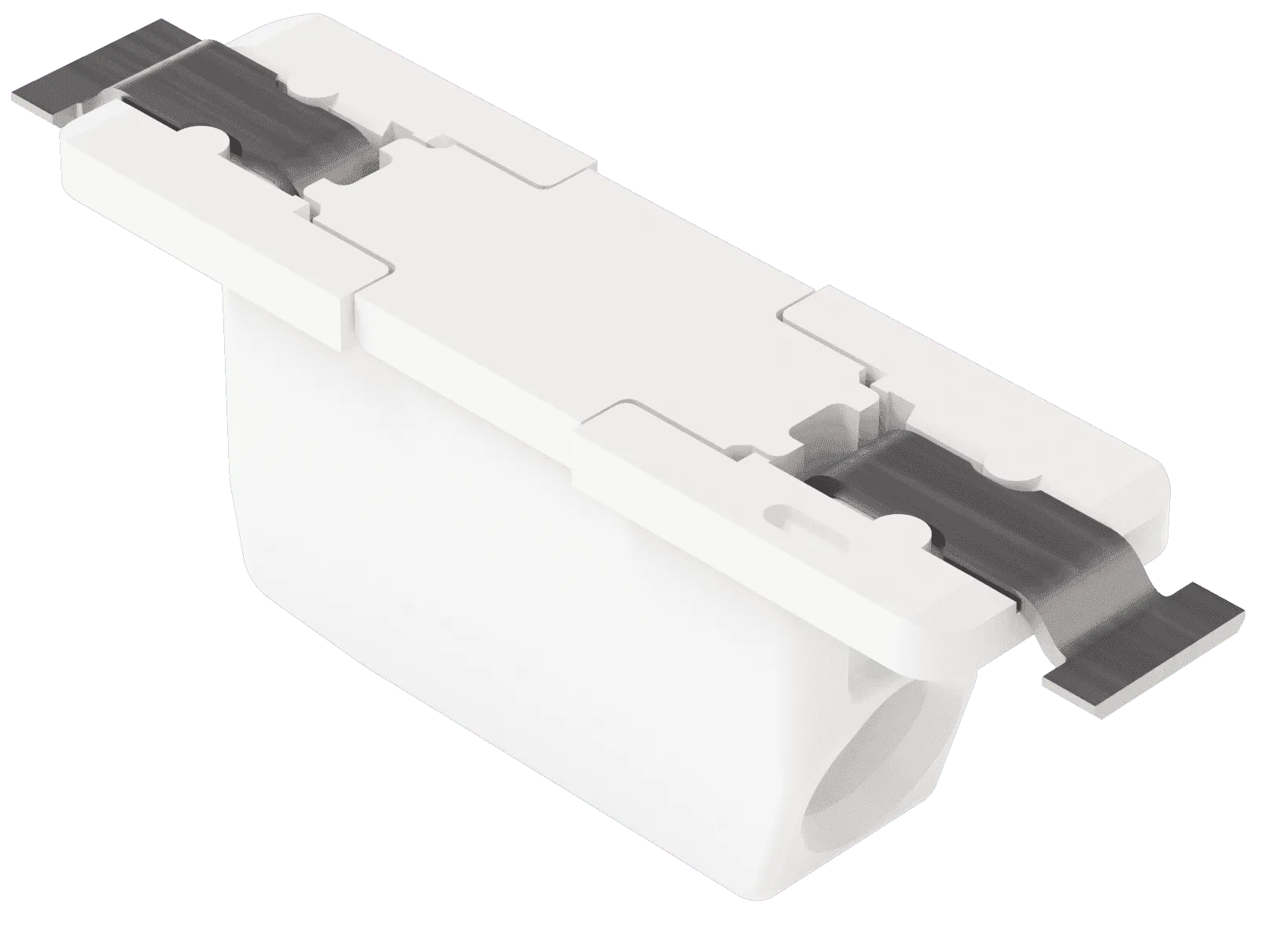

Through-Board SMD PCB Terminal Block; 0.75 mm²; Pin spacing 6.5 mm; Push-in CAGE CLAMP®; in tape-and-reel packaging; white

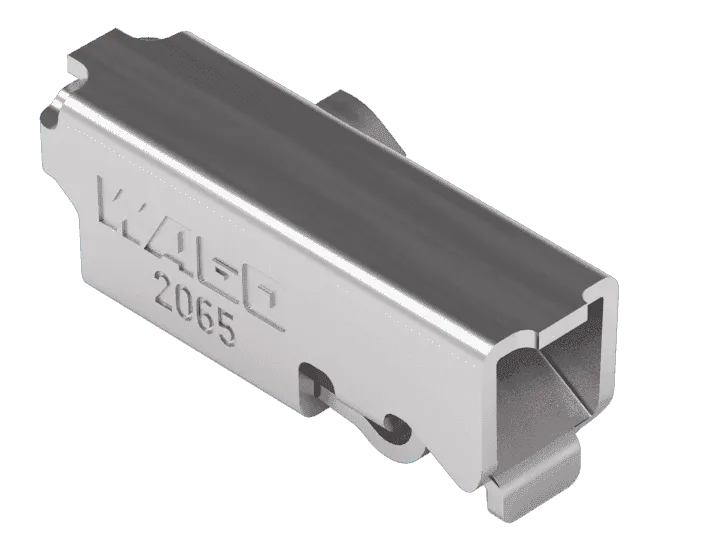

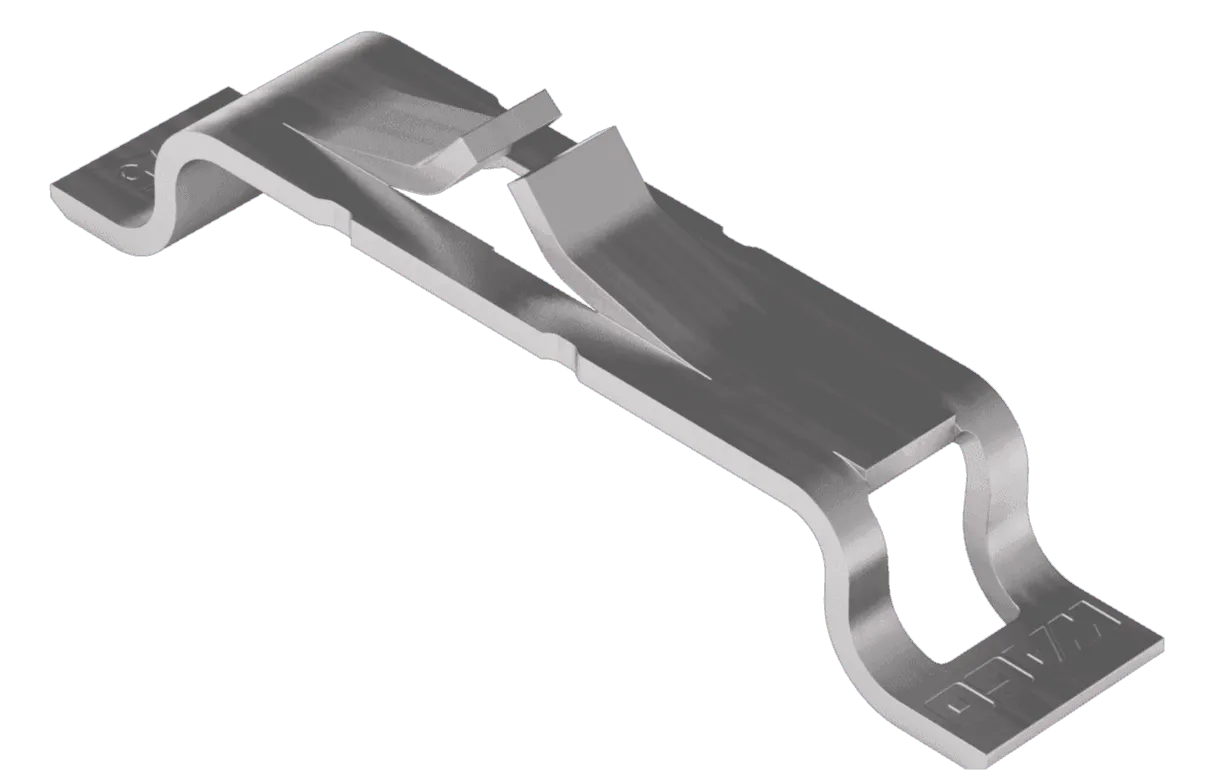

Through-Board SMD PCB Terminal Block; Pin spacing 3 mm; PUSH WIRE®; in tape-and-reel packaging; Without housing; silver-colore
Mission Efficiency: Saving Time throughout Production.
Mission Efficiency: Saving Time throughout Production.
Every production step counts on the way to the next level. With PCB connection technology from WAGO, you eliminate unnecessary steps, avoid dead times and keep processes flowing. Whether assembling, testing, or wiring – production is faster, easier and more efficient. This saves you valuable time and helps you gain cost advantages while taking your throughput to the next level.
Optimized Manufacturing with the Power of the Spring
Use spring pressure connection technology to reach a new level of production: Maintenance-free, without any required retightening or torque testing. This saves effort, increases throughput and thus reduces overall operating costs.
- Plug and done: Reduced wiring effort thanks to spring pressure connection technology with Push-in CAGE CLAMP®.
- It holds and holds and holds: Thanks to maintenance-free spring pressure connection technology, all conductors always stay firmly and securely connected.
- Time and cost savings: By not having to screw the conductor tight and check the torque, throughput in PCB assembly processes increases.
Without pre-drying into the next production step
"Moisture Sensitivity Level 1" (MSL 1) turns the process into a fast run: THR products go straight into the reflow oven without pre-drying. This saves time, reduces effort, and keeps your production flowing.
- Uncomplicated storage: Terminal blocks remain unaffected by ambient humidity and are immediately reflow-ready.
- Decisive time advantage: With MSL 1, drying times before placement are unnecessary.
- Faster processing: Fewer process steps, faster production, faster to the finish.
Check without stopping: Testing in the flow.
Test directly inline: The terminal block remains locked, and the test runs automatically via the test port. No loosening of the conductor, no extra step – that saves time in production and keeps throughput consistently high.
- Permanently firmly connected: Thanks to the test port, the conductor remains firmly connected – even during the function test.
- Testing without "dead" time: No loosening, no reassembly, no unnecessary effort.
- No manual action necessary: the test runs directly within the automated production process.
