YOUR MISSION:
PCB Terminal Block; with levers; 16 mm²; pin spacing 10 mm; Push-in CAGE CLAMP®; gray
The world of power electronics is complex, but WAGO makes it manageable. Discover solutions that safely transmit the highest currents, optimize processes and take innovation to the next level. As your partner, we’re with you through every challenge – from planning, to achieving the perfect connection.

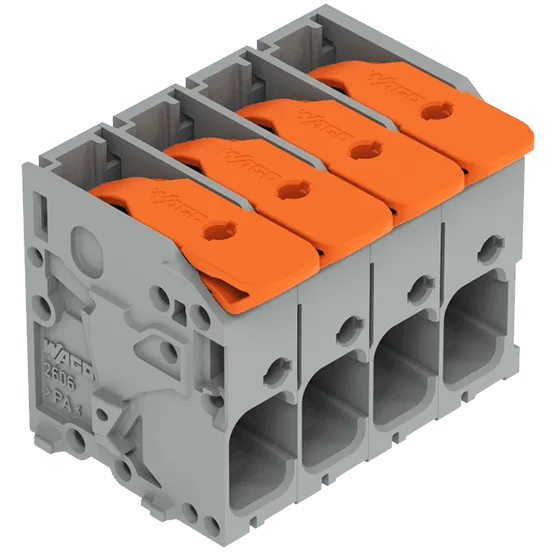

PCB Terminal Block; with levers; 16 mm²; pin spacing 10 mm; Push-in CAGE CLAMP®; gray

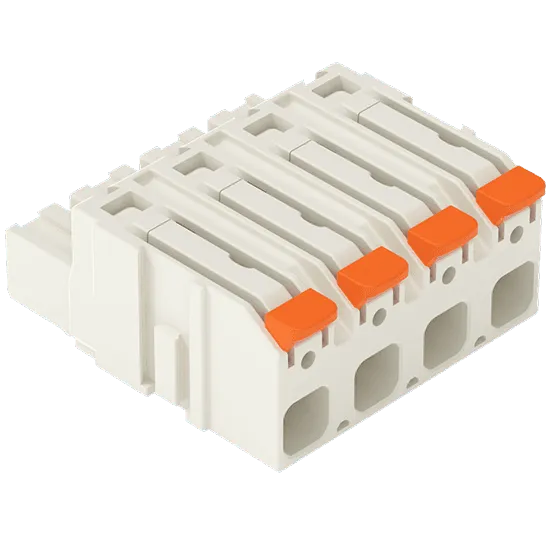

MCS MIDI HV: Maximum Performance – New Dimension
The MCS MIDI HV Pluggable PCB Connector is a game changer for your high-current applications: a compact solution for cross-sections up to 2.5 mm², this robust, UL-600-approved connector is ideal for establishing safe, efficient connections – even under high currents.
Your Upgrade for Thermal Management
Your Upgrade for Thermal Management

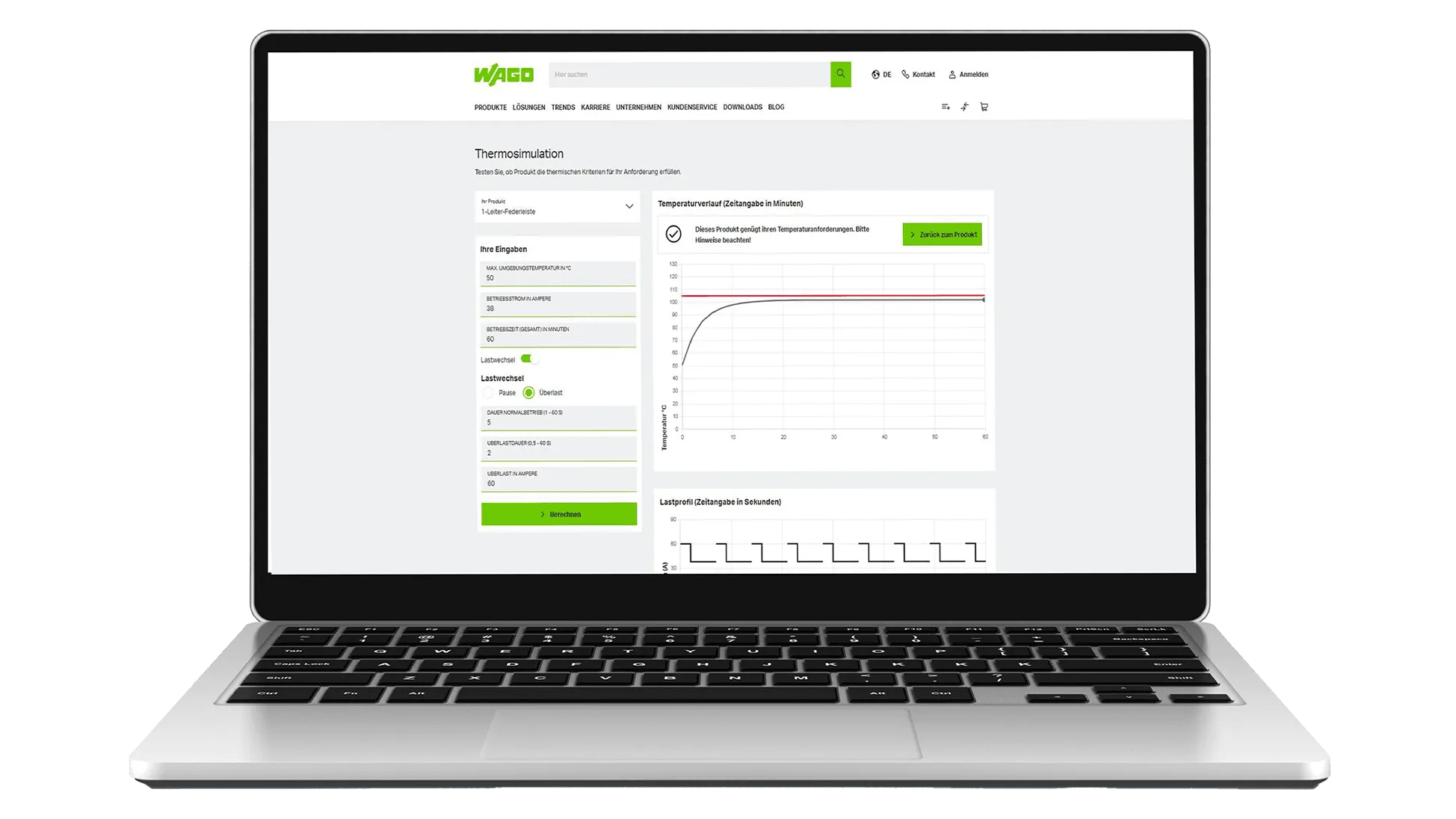

Heat is the final boss your power electronics have to defeat. Our Thermal Simulation Tool helps you find the ideal size for your temperature and current requirements so you stay in control – as small as possible and as large as necessary! It helps you make the best decision for your mission.
Your Next Upgrade Is Waiting
Your Next Upgrade Is Waiting
Innovation is what drives us. Discover our portfolio for your PCB and take your mission to the next level. Designed for maximum performance and efficiency, it’s ready to meet the challenges your power electronics face.
1-Conductor Female Connector; with levers; Push-in CAGE CLAMP®; 10 mm²; pin spacing 7.62 mm; 100 % protected against mismating; light gray
1-Conductor Female Connector; with levers; Push-in CAGE CLAMP®; 16 mm²; pin spacing 10.16 mm; 100 % protected against mismating; light gray

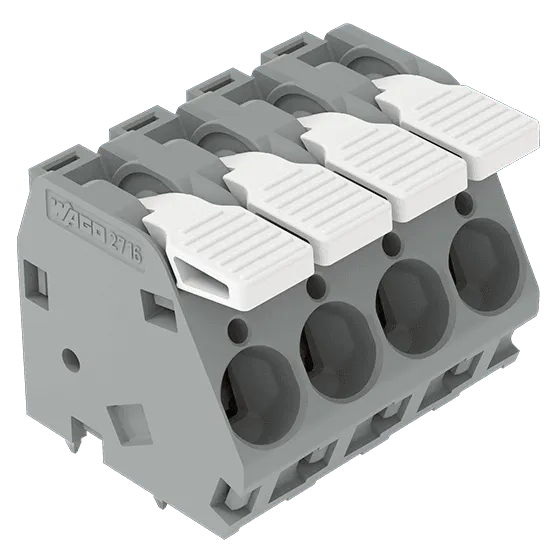

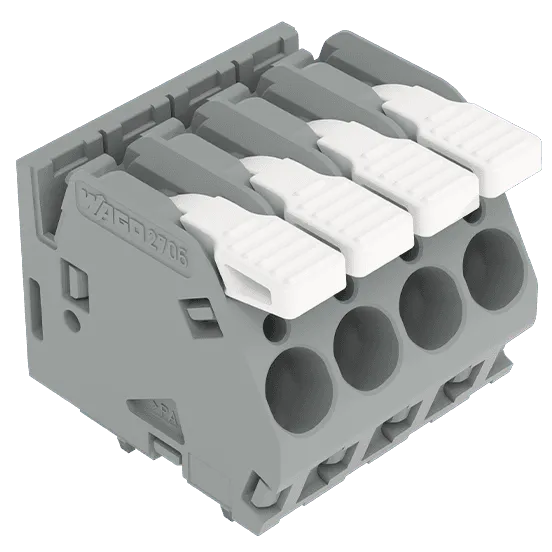

PCB Terminal Block; with levers; 6 mm²; pin spacing 7.5 mm; CAGE CLAMP®; gray
PCB Terminal Block; with levers; 16 mm²; pin spacing 10 mm; CAGE CLAMP®; gray

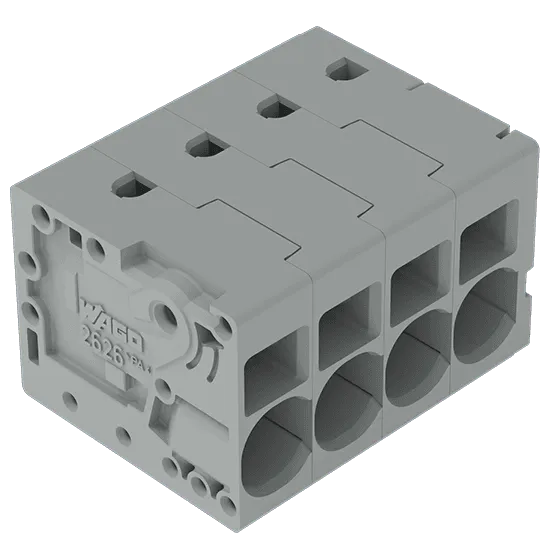

PCB Terminal Block; 6 mm²; pin spacing 7.5 mm; CAGE CLAMP®; gray
1-Conductor Female Connector; with levers; Push-in CAGE CLAMP®; 2.5 mm²; pin spacing 7.5 mm; 100 % protected against mismating; light gray
PCB Terminal Block; with levers; 6 mm²; pin spacing 7.5 mm; Push-in CAGE CLAMP®; gray
PCB Terminal Block; with levers; 16 mm²; pin spacing 10 mm; Push-in CAGE CLAMP®; gray
PCB Terminal Block; 6 mm²; pin spacing 7.5 mm; Push-in CAGE CLAMP®; grey

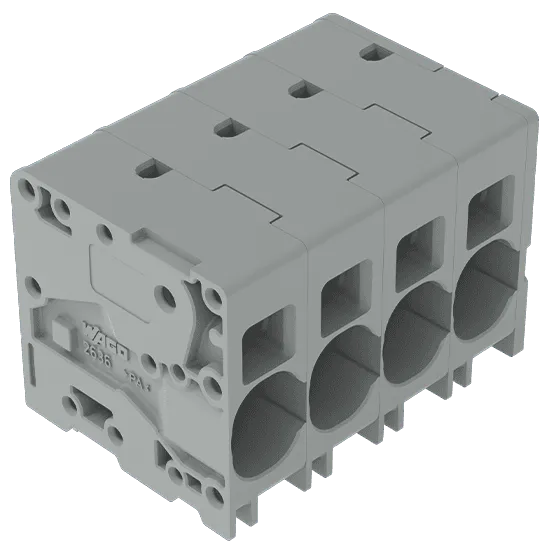

PCB Terminal Block; 16 mm²; pin spacing 10 mm; Push-in CAGE CLAMP®; grey
Your Actuation Type, Your Control
Your Actuation Type, Your Control
Select the actuation type that makes your installation most efficient: whether tool-free operation with levers, precise push-button actuation or conventional tool-based use.
Tool-Free Actuation

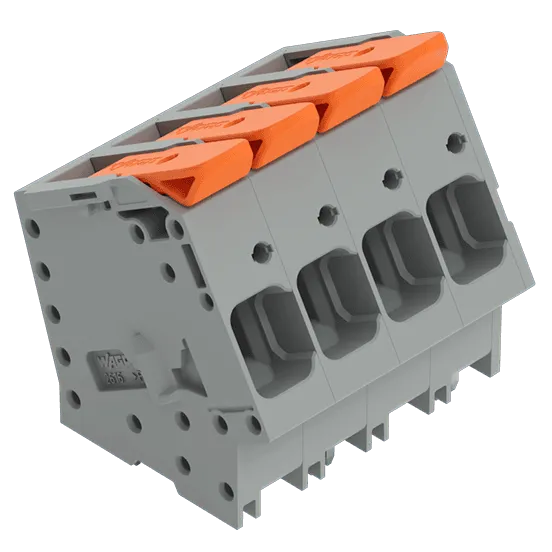

With WAGO’s PCB Terminal Blocks and Pluggable Connectors with Levers, every wiring task becomes an intuitive mission. Pull the lever up, insert a conductor and push the lever back down – done! Visible safety, impressive performance!
- Intuitive handling
- Tool-free wiring
- Maximum safety
Tool or Push-Button Actuation
When every millimeter counts: WAGO’s PCB Terminal Blocks and Pluggable Connectors with push-buttons or operating tools offer clever wiring solutions that are compact, economical and safe.
- Space-saving wiring
- Economical solution
- Ideal for factory wiring
Wiring Drives: Ready to Connect
Power electronics are the heart of drive technology. Discover WAGO solutions for controlling electric motors in demanding applications. Master your mission with robust UL-approved connection technology.
